      熱銷產品

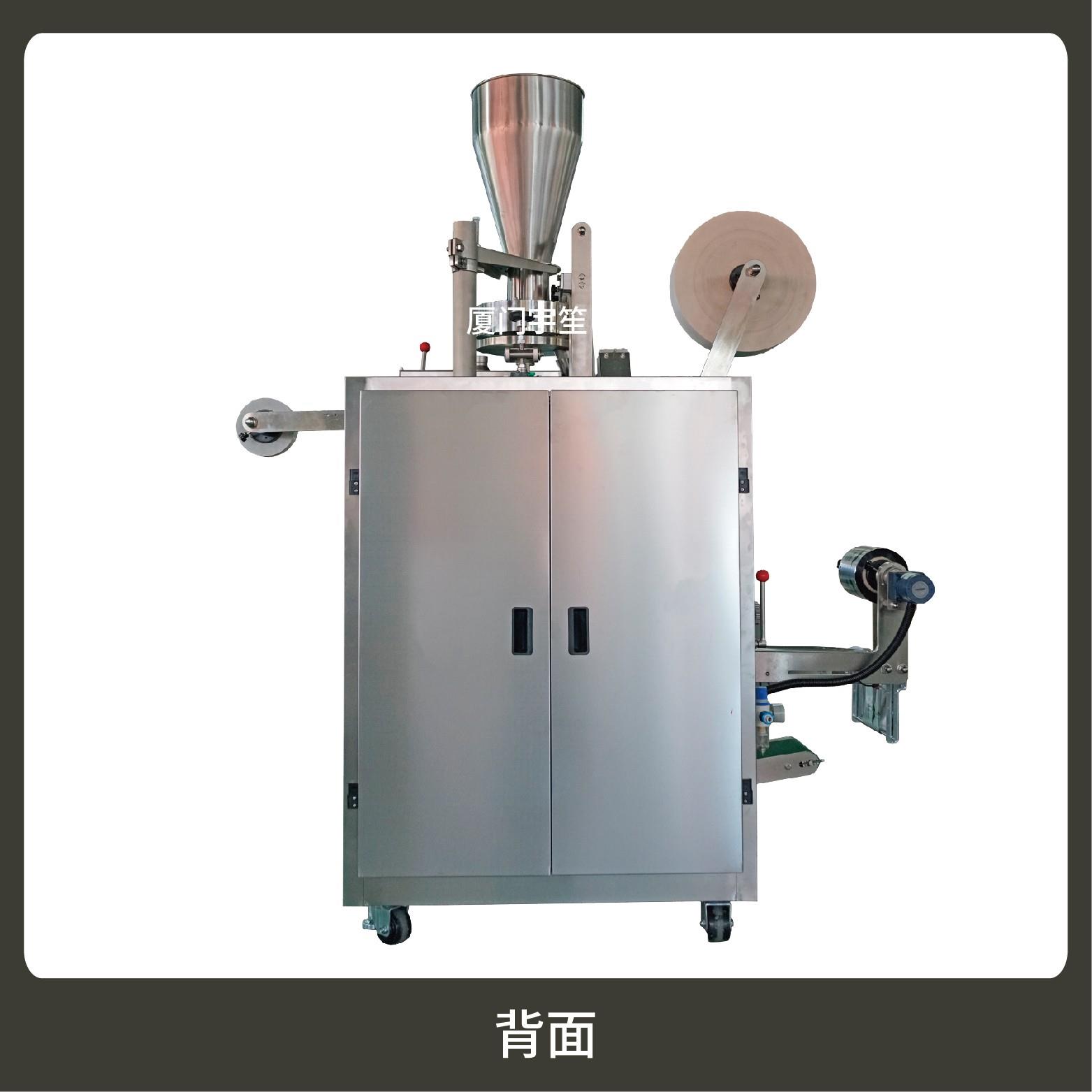

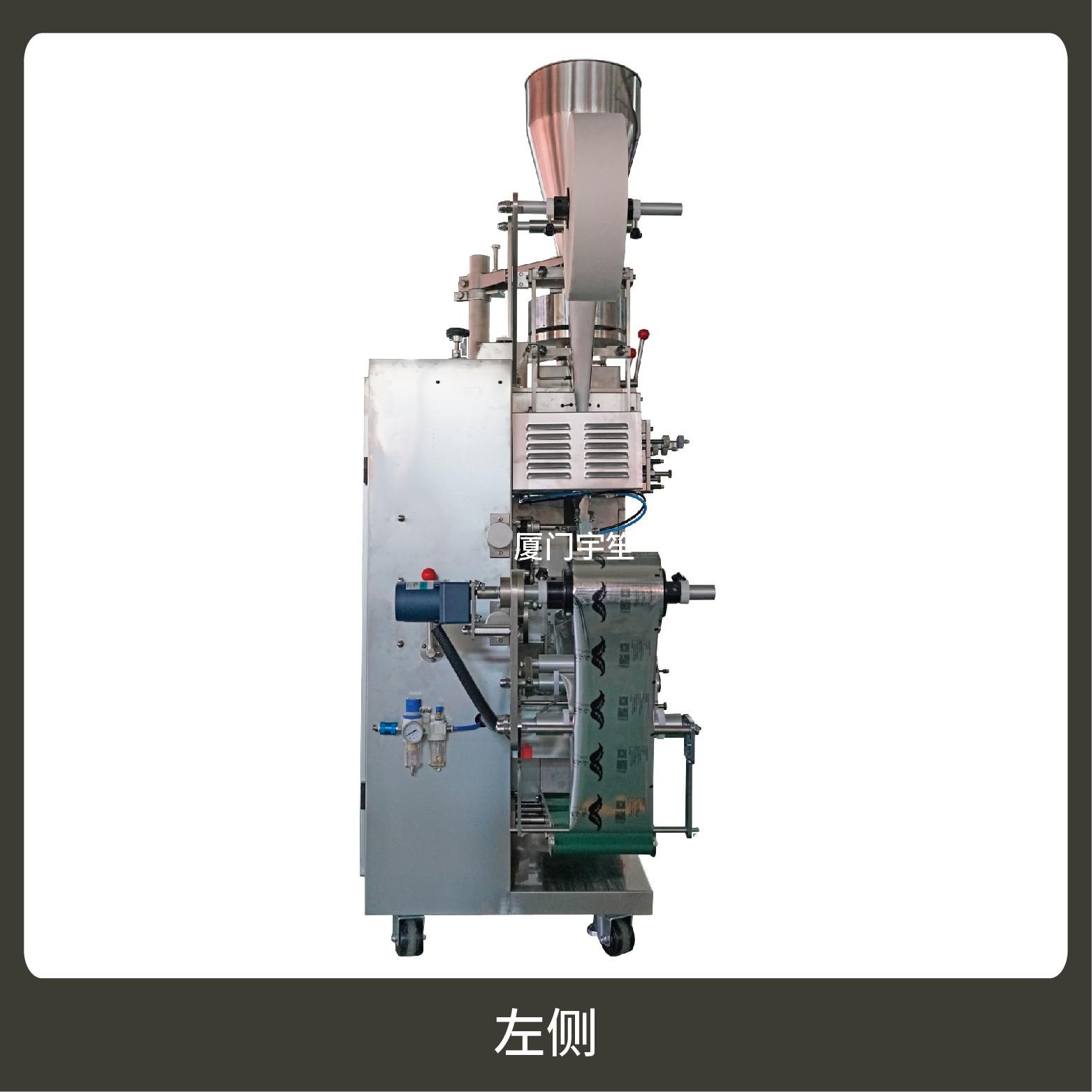

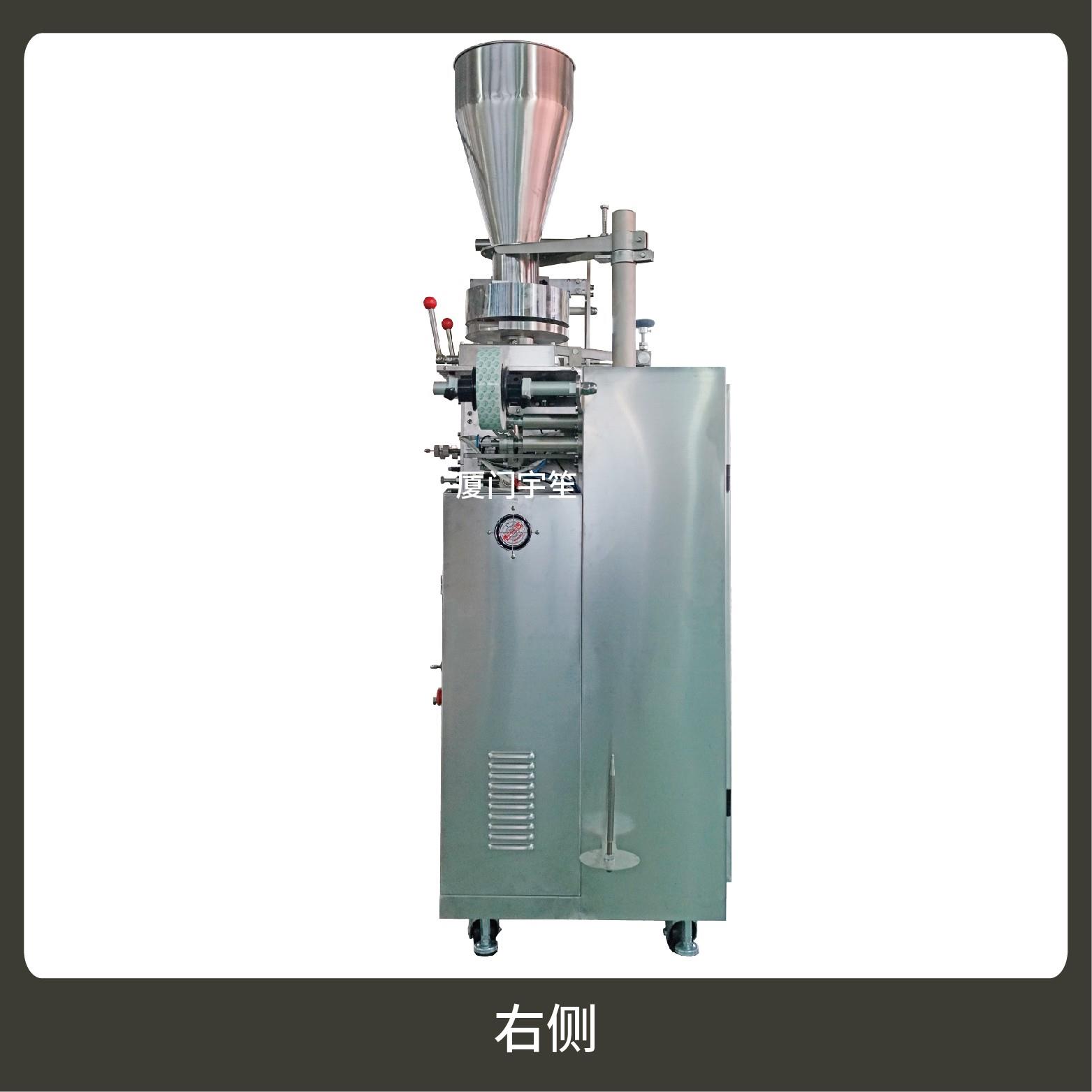

      YS-169 新一代 袋泡茶內外袋包裝機

      YS-169 New Generation Tea bag packing machine with outer envelope
      YS-169 新一代 袋泡茶內外袋包裝機
      特  點 Characteristic
      1、適用于茶葉、藥茶、保健茶草根類等小顆粒物的內外袋一次性包裝。
      The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.
      2、內、外袋拉膜由步進電機控制,袋長穩定、定位準確。
      Inner and outer bags film drawing is controlled by the stepper motor, stable bag length and accurate positioning.
      3、采用PID調節溫度控制器,溫度控制得更準確。
      The temperature controller is adjusted by PID to make the temperature control more accurate.
      4、采用PLC控制整機的動作,人機界面顯示,保證產品的衛生可靠。
      Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products

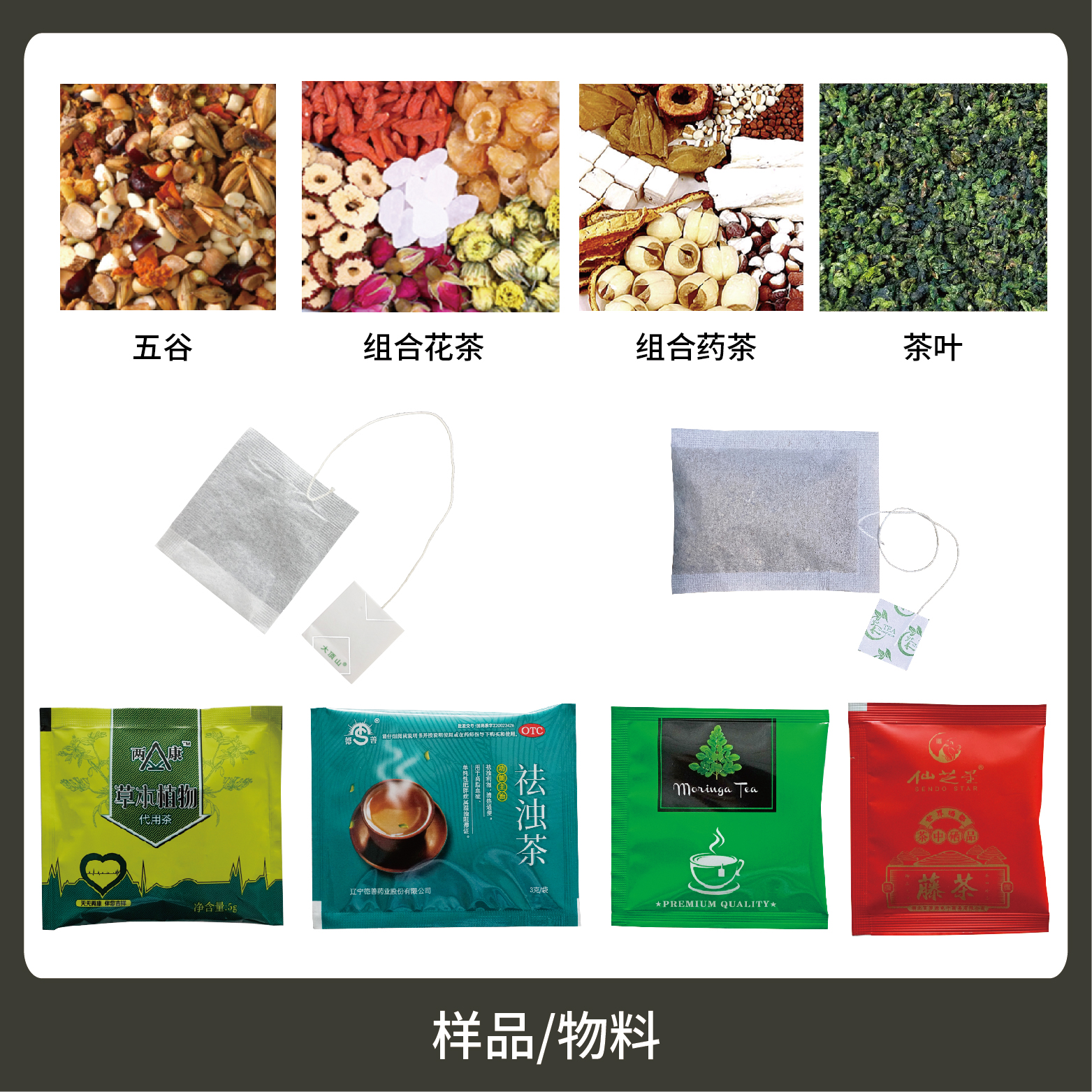

      5、包裝材料:茶葉濾紙、棉線、復合膜及標簽。
      Packing material:filter paper, thread, composite membrane and labels.
      封口方式 Sealing Type
      三邊封口Three sides sealing
      技術參數
      Technical Parameters
      計量范圍:3 - 10 g( 1.6 ~ 26 ml )
      Measuring Scope
      內袋尺寸:長 ( L ) :50 - 70 mm  寬 ( W ) :45 - 80 mm
      Inner bag size
      外袋尺寸:長  ( L ) :80 - 120mm   寬 ( W ) :75 - 95 mm
      Outer bag size
      包裝速度:30-50 bags / min
      Packing Speed
      外型尺寸:1750*740*1950mm
      Dimension ( L*W*H )
      整機重量:550 kg
      Weight
      總 功 率:AC220V/ 50Hz /3.7kw
      Total Power
      氣     源:≥0.4m3/min
      Gas source

      特  點 Characteristic
      1、適用于茶葉、藥茶、保健茶草根類等小顆粒物的內外袋一次性包裝。
      The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.
      2、內、外袋拉膜由步進電機控制,袋長穩定、定位準確。
      Inner and outer bags film drawing is controlled by the stepper motor, stable bag length and accurate positioning.
      3、采用PID調節溫度控制器,溫度控制得更準確。
      The temperature controller is adjusted by PID to make the temperature control more accurate.
      4、采用PLC控制整機的動作,人機界面顯示,保證產品的衛生可靠。
      Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products
      5、包裝材料:茶葉濾紙、棉線、復合膜及標簽。
      Packing material:filter paper, thread, composite membrane and labels.
      技術參數
      Technical Parameters
      計量范圍:3 - 10 g( 1.6 ~ 26 ml )
      Measuring Scope
      內袋尺寸:長 ( L ) :50 - 70 mm  寬 ( W ) :45 - 80 mm
      Inner bag size
      外袋尺寸:長  ( L ) :80 - 120mm   寬 ( W ) :75 - 95 mm
      Outer bag size
      包裝速度:30-50 bags / min
      Packing Speed
      外型尺寸:1750*740*1950mm
      Dimension ( L*W*H )
      整機重量:550 kg
      Weight
      總 功 率:AC220V/ 50Hz /3.7kw
      Total Power
      氣     源:≥0.4m3/min
      Gas source

      選購配備
      Optional Equipments
      打碼機
      Coding machine
      敲打
      Tap
      適用于茶葉、藥茶、保健茶草根類等小顆粒物的內外袋一次性包裝。
      The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.
